产品概述
体积小巧，流量高达150L/min
液体压力可达7bar
中心体部分由防腐蚀涂层
可靠的空气换向阀

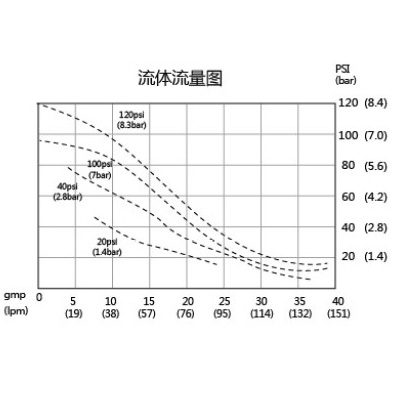

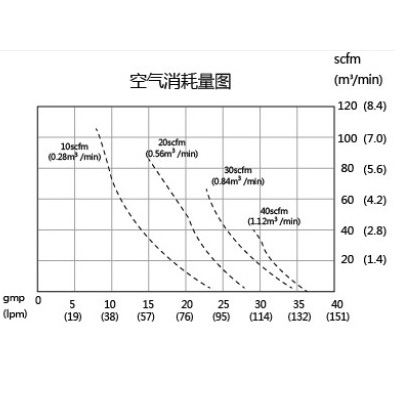

性能曲线

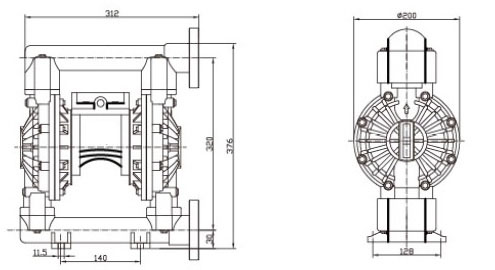

安装尺寸图
技术参数
| Max working pressure |
100psi(0.7Mpa,7bar) |
| Max flow rate |
40 gpm(150 lpm) |
| Max reciprocating speed |
276cpm |
| Max suction height |
5m |
| Max permitted grain |
4mm |
| Max air consumption |
60scfm(1.7m³/min) |
| Air inlet size |
1/2 in.npt(f) |
| Air outlet size |
1/2 in.npt(f) |
| Fluid inlet size |
1 in.npt(f) |
| Fluid outlet size |
1 in.npt(f) |
| Weight |
8.0kg |
